Apple iPhone 17 Pro Max

Variants, pricing, key features and organized technical specifications in one clean view.

Starting MSRP

$1,199.00

Configuration

4 variants

Choose storage

Available colors

Cosmic Orange Deep Blue Silver

View current deals View full specifications ↓ More Apple

At a glance

The essentials, upfront.

3 key specs

Display

6.9-inch (diagonal) all-screen OLED display

Processor

A19 Pro chip 6-core CPU with 2 performance and 4 efficiency cores 6-core GPU with Neural Accelerators 16-core Neural Engine Hardware-accelerated ray tracing

Main camera

48MP Pro Fusion camera system Customizable default lens (Fusion Main) Sapphire crystal lens cover Adaptive True Tone flash Photonic Engine Deep Fusion Smart HDR 5 Next-generation portraits with Focus and Depth Control Portrait Lighting with six effects Night mode Panorama (up to 63MP) Latest-generation Photographic Styles Spatial photos 48MP macro photography ProRAW Wide color capture for photos and Live Photos Lens correction (Fusion Ultra Wide) Advanced red-eye correction Auto image stabilization Burst mode Photo geotagging Image formats captured: HEIF, JPEG, and DNG

Key features

What stands out.

A quick visual overview before you dive into the complete technical specification sheet.

UNIBODY DESIGN. FOR EXCEPTIONAL POWER

Heat-forged aluminum unibody design for the most powerful iPhone ever made.

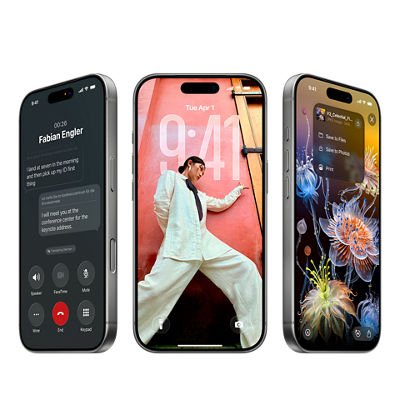

DURABLE CERAMIC SHIELD. FRONT AND BACK

Ceramic Shield protects the back of iPhone 17 Pro Max, making it 4x more resistant to cracks.2 And the new Ceramic Shield 2 on the front has 3x better scratch resistance.3

THE ULTIMATE PRO CAMERA SYSTEM

With all 48MP rear cameras and 8x optical-quality zoom—the widest zoom range ever in an iPhone. It’s the equivalent of 8 pro lenses in your pocket.

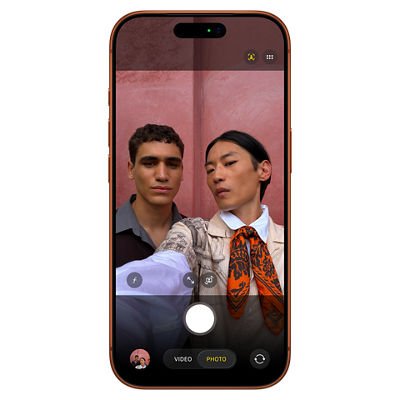

18MP CENTER STAGE FRONT CAMERA

Flexible ways to frame your shot. Smarter group selfies, Dual Capture video for simultaneous front and rear recording, and more.

A19 Pro chip. Vapor cooled. Lightning fast

A19 Pro is the most powerful iPhone chip yet, delivering up to 40 percent better sustained performance.

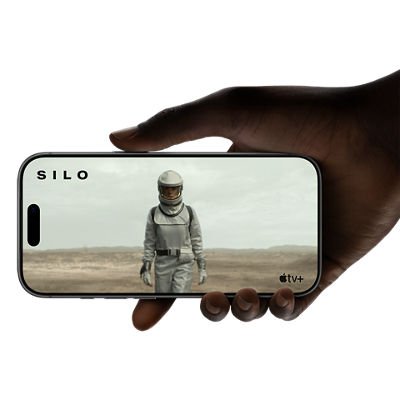

Best battery life in an iPhone ever

The unibody design creates massive additional battery capacity, for up to 39 hours of video playback.4 Charge up to 50% in 20 minutes.5

Technical details

Full specifications

Only populated values are shown, so the sheet stays useful instead of filling the page with empty rows.

Dimensions

2 details

Size (inches): 6.43 x 3.07 x 0.34
Weight (ounces): 8.22

Display

6 details

Display size (inches): 6.9-inch (diagonal) all-screen OLED display
Resolution (pixels): 2868-by-1320-pixel resolution at 460 ppi
Super Retina XDR display: The iPhone 17 Pro Max display has rounded corners that follow a beautiful curved design, and these corners are within a standard rectangle. When measured as a standard rectangular shape, the screen is 6.86 inches diagonally (actual viewable area is less).
Contrast ratio (typical): 2,000,000:1 contrast ratio (typical)
Splash, water, and dust resistant: Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529
More details: Dynamic Island Always-On display ProMotion technology with adaptive refresh rates up to 120Hz HDR display True Tone Wide color (P3) Haptic Touch 1000 nits max brightness (typical); 1600 nits peak brightness (HDR); 3000 nits peak brightness (outdoor); 1 nit minimum brightness Fingerprint-resistant oleophobic coating Anti-reflective coating Support for display of multiple languages and characters simultaneously

Camera & Video

6 details

Aperture: 48MP Fusion Main: 24 mm, ƒ/1.78 aperture, second-generation sensor-shift optical image stabilization, 100% Focus Pixels, support for super-high-resolution photos (24MP and 48MP) Also enables 12MP optical-quality 2x Telephoto: 48 mm, ƒ/1.78 aperture, second-generation sensor-shift optical image stabilization, 100% Focus Pixels 48MP Fusion Ultra Wide: 13 mm, ƒ/2.2 aperture and 120° field of view, Hybrid Focus Pixels, super-high-resolution photos (48MP) 48MP Fusion Telephoto: 100 mm (4x), ƒ/2.8 aperture, Hybrid Focus Pixels, 3D sensor-shift optical image stabilization and autofocus, tetraprism design Also enables 12MP optical-quality 8x Telephoto: 200 mm, ƒ/2.8 aperture, Hybrid Focus Pixels, 3D sensor-shift optical image stabilization and autofocus, tetraprism design
Zoom: 8x optical-quality zoom in, 2x optical zoom out; 16x optical-quality zoom range Digital zoom up to 40x
More rear-facing camera details: 48MP Pro Fusion camera system Customizable default lens (Fusion Main) Sapphire crystal lens cover Adaptive True Tone flash Photonic Engine Deep Fusion Smart HDR 5 Next-generation portraits with Focus and Depth Control Portrait Lighting with six effects Night mode Panorama (up to 63MP) Latest-generation Photographic Styles Spatial photos 48MP macro photography ProRAW Wide color capture for photos and Live Photos Lens correction (Fusion Ultra Wide) Advanced red-eye correction Auto image stabilization Burst mode Photo geotagging Image formats captured: HEIF, JPEG, and DNG
Video Recording: 4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion Main), or 120 fps (Fusion Main) 1080p Dolby Vision video recording at 25 fps, 30 fps, 60 fps, or 120 fps (Fusion Main) 720p Dolby Vision video recording at 30 fps Cinematic mode up to 4K Dolby Vision at 30 fps Action mode up to 2.8K Dolby Vision at 60 fps Spatial video recording at 1080p at 30 fps ProRes video recording up to 4K at 120 fps with external recording ProRes RAW Academy Color Encoding System Apple Log 2 Genlock support Macro video recording, including slo-mo and time-lapse Slo-mo video support for 1080p up to 240 fps and 4K Dolby Vision up to 120 fps (Fusion Main) Dual Capture up to 4K Dolby Vision at 30 fps Time-lapse video with stabilization Night mode Time-lapse QuickTake video up to 4K Dolby Vision at 60 fps Second-generation sensor-shift optical image stabilization for video (Fusion Main) 3D sensor-shift optical image stabilization and autofocus for video (Fusion Telephoto) Digital zoom up to 15x Audio zoom True Tone flash Cinematic video stabilization (4K, 1080p, and 720p) Continuous autofocus video Take 8MP still photos while recording 4K video Playback zoom Video formats recorded: HEVC, H.264, ProRes, and ProRes RAW Spatial Audio and stereo recording Four studio-quality mics Wind noise reduction Audio Mix
Video Playback: Supported formats include HEVC, H.264, AV1, and ProRes HDR with Dolby Vision, HDR10+/HDR10, and HLG Up to 4K HDR AirPlay for mirroring, photos, and video out to Apple TV (2nd generation or later) or AirPlay-enabled smart TV Video mirroring and video out support: Up to 4K HDR through native DisplayPort output over USB-C or USB-C Digital AV Adapter (model A2119; adapter sold separately)
TrueDepth camera: 18MP Center Stage camera ƒ/1.9 aperture Autofocus with Focus Pixels Retina Flash Tap to zoom and rotate Center Stage for photos Ultra-stabilized video Dual Capture Center Stage for video calls Photonic Engine Deep Fusion Smart HDR 5 Next-generation portraits with Focus and Depth Control Portrait Lighting with six effects Animoji and Memoji Night mode Latest-generation Photographic Styles ProRAW Wide color capture for photos and Live Photos Lens correction Auto image stabilization Burst mode 4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, or 60 fps 1080p Dolby Vision video recording at 25 fps, 30 fps, or 60 fps Cinematic mode up to 4K Dolby Vision at 30 fps ProRes video recording up to 4K at 60 fps with external recording ProRes RAW Academy Color Encoding System Apple Log 2 Slo-mo video support for 1080p at 120 fps Time-lapse video with stabilization Night mode Time-lapse QuickTake video up to 4K at 60 fps in Dolby Vision Cinematic video stabilization (4K, 1080p, and 720p) Spatial Audio and stereo recording Wind noise reduction Audio Mix

Battery

6 details

Audio playback: Supported formats include AAC, APAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos Spatial Audio playback User-configurable maximum volume limit
Video playback (hours): Up to 39 hours
Video playback, streamed (hours): Up to 35 hours
Charging: Up to 50% charge in 20 minutes with 40W adapter or higher (available separately) paired with USB-C charging cable
Wireless charging capable: Qi2 wireless charging up to 25W Magnet array Alignment magnet Accessory Identification NFC Magnetometer
Fast charging capable: Up to 50% charge in 20 minutes with 40W adapter or higher (available separately) paired with USB-C charging cable Up to 50% charge in 30 minutes with 30W adapter or higher paired with MagSafe Charger (both available separately)

Processor

1 detail

Chipset: A19 Pro chip 6-core CPU with 2 performance and 4 efficiency cores 6-core GPU with Neural Accelerators 16-core Neural Engine Hardware-accelerated ray tracing

Memory

1 detail

Capacity: 256GB | 512GB | 1TB | 2TB

Operating System

4 details

iOS: 26 Subject to change based on future operating system updates
Face ID: Enabled by TrueDepth technology in the Center Stage front camera
Apple Pay: Pay with your iPhone using Face ID in stores, within apps, and on the web Send and receive money in Messages with Apple Cash Complete purchases made with Apple Pay on your Mac Pay for your ride using Express Transit
Siri: Get help with everyday tasks like sending messages, setting reminders, and more Activate hands-free with only your voice using “Siri” or “Hey Siri,” or use Type to Siri Protected by the strongest privacy of any intelligent assistant Powered by Apple Intelligence, Siri is more natural and helpful

Wireless Technology

11 details

AT&T 5G+ supported network bands*: n77 C-Band, n260
5G (U.S. and other countries)*: Bands n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n53, n66, n70, n71, n75, n76, n77, n78 n79, n258, n260, n261
4G LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71
UMTS/HSPA+/DC-HSDPA**: 850, 900, 1700/2100, 1900, 2100 MHz
GSM/GPRS/EDGE**: 850, 900, 1800, 1900 MHz
Video calling: FaceTime video calling over cellular or Wi-Fi FaceTime HD (1080p) video calling over 5G or Wi-Fi Portrait mode in FaceTime video
Audio calling: FaceTime audio Voice over LTE (VoLTE) Wi-Fi calling Spatial Audio Voice Isolation and Wide Spectrum microphone modes
Wi-Fi connectivity: Wi-Fi 7 (802.11be) with 2x2 MIMO
Near Field Communication (NFC): With reader mode
Bluetooth technology: v6
SIM type: Dual eSIM (two active eSIMs; stores eight or more eSIMs) iPhone 17 Pro and iPhone 17 Pro Max use advanced eSIM technology for more convenience and security (not compatible with physical SIM cards).
